| Brand Name: | YongBiao |
| Model Number: | GB/T 818-2016 |
| MOQ: | 10000 |
| Price: | Negotiation |
| Packaging Details: | Carton Box |
| Payment Terms: | TT |

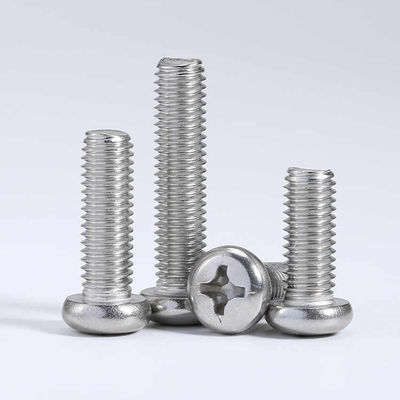

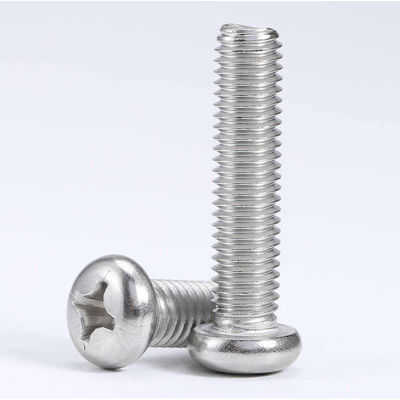

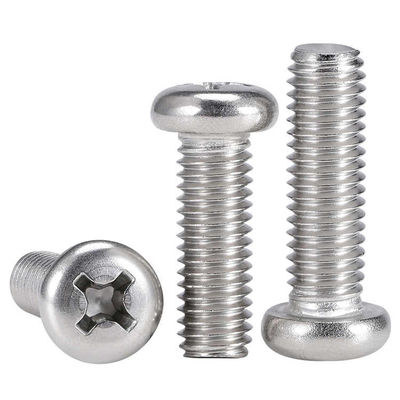

SS304 Cross Recess Pan Head Screws
Material characteristics: Made of 304 stainless steel, it has excellent corrosion resistance and can resist
weak corrosive media such as air, steam, and water.
| d | M1.6 | M2 | M2.5 | M3 | (M3.5) | M4 | M5 | M6 | M8 | M10 | ||
| P | 0.35 | 0.4 | 0.45 | 0.5 | 0.6 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | ||
| a | Max | 0.7 | 0.8 | 0.9 | 1 | 1.2 | 1.4 | 1.6 | 2 | 2.5 | 3 | |
| da | 2 | 2.6 | 3.1 | 3.6 | 4.1 | 4.7 | 5.7 | 6.8 | 9.2 | 11.2 | ||
| dk | Standard | 3.2 | 4 | 5 | 5.6 | 7 | 8 | 9.5 | 12 | 16 | 20 | |
| Min | 2.9 | 3.7 | 4.7 | 5.3 | 6.64 | 7.64 | 9.14 | 11.57 | 15.57 | 19.48 | ||
| k | Max | 1.3 | 1.6 | 2.1 | 2.4 | 2.6 | 3.1 | 3.7 | 4.6 | 6 | 7.5 | |
| Min | 1.16 | 1.46 | 1.96 | 2.26 | 2.46 | 2.92 | 3.52 | 4.3 | 5.7 | 7.14 | ||
| r | Min | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.2 | 0.2 | 0.25 | 0.4 | 0.4 | |
| R | ≈ | 2.5 | 3.2 | 4 | 5 | 6 | 6.5 | 8 | 10 | 13 | 16 | |
| x | Max | 0.9 | 1 | 1.1 | 1.25 | 1.5 | 1.75 | 2 | 2.5 | 3.2 | 3.8 | |
| Type | 0 | 0 | 1 | 1 | 2 | 2 | 2 | 3 | 4 | 4 | ||
| M1 | H | 1.7 | 1.9 | 2.7 | 3 | 3.9 | 4.4 | 4.9 | 6.9 | 9 | 10.1 | |
| Depth | H | 0.95 | 1.2 | 1.55 | 1.8 | 1.9 | 2.4 | 2.9 | 3.6 | 4.6 | 5.8 | |
| Depth | 0.7 | 0.9 | 1.15 | 1.4 | 1.4 | 1.9 | 2.4 | 3.1 | 4 | 5.2 | ||
| M2 | Z | 1.6 | 2.1 | 2.6 | 2.8 | 3.9 | 4.3 | 4.7 | 6.7 | 8.8 | 9.9 | |
| Depth | Z | 0.9 | 1.42 | 1.5 | 1.75 | 1.93 | 2.34 | 2.74 | 3.46 | 4.5 | 5.69 | |
| Depth | 0.65 | 1.17 | 1.25 | 1.5 | 1.48 | 1.89 | 2.29 | 3.03 | 4.05 | 5.24 | ||
Furniture manufacturing:
In furniture manufacturing, stainless steel cross head screws can be used to make connections between wooden boxes, beams, and boards, providing a stable and reliable connection effect.
|
|
